Importing SketchPoints from DataFile

This tool imports a set of 2D coordinates from a file and creates a 2D Sketch plane with the points.

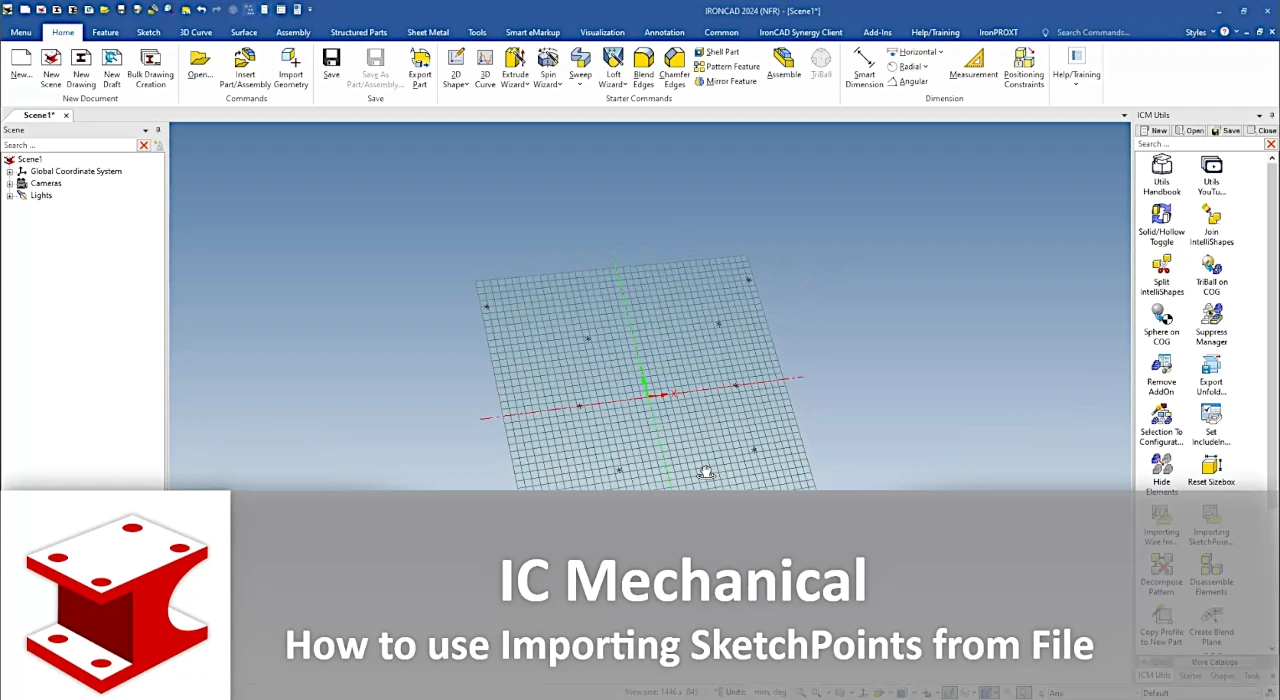

Click to show content from YouTube.
(read the service's privacy policy)

Operativity

• Drop the tool into the scene,
• select data files *.txt or *.dat,
• the 2D Sketch plane with the points is created.

The file format must have one point per line with an X and Y values which must be separated by spaces, lines starting with # are ignored.

# file description
# X  Y
-50  -50
-50  0
-50  50
0  40
50  50
40  0
50  -50
0  -40
...
...
