Set Include in BOM Status

Set Include in BOM Status catalog icon

The tool add the elements at the Bill of Material.

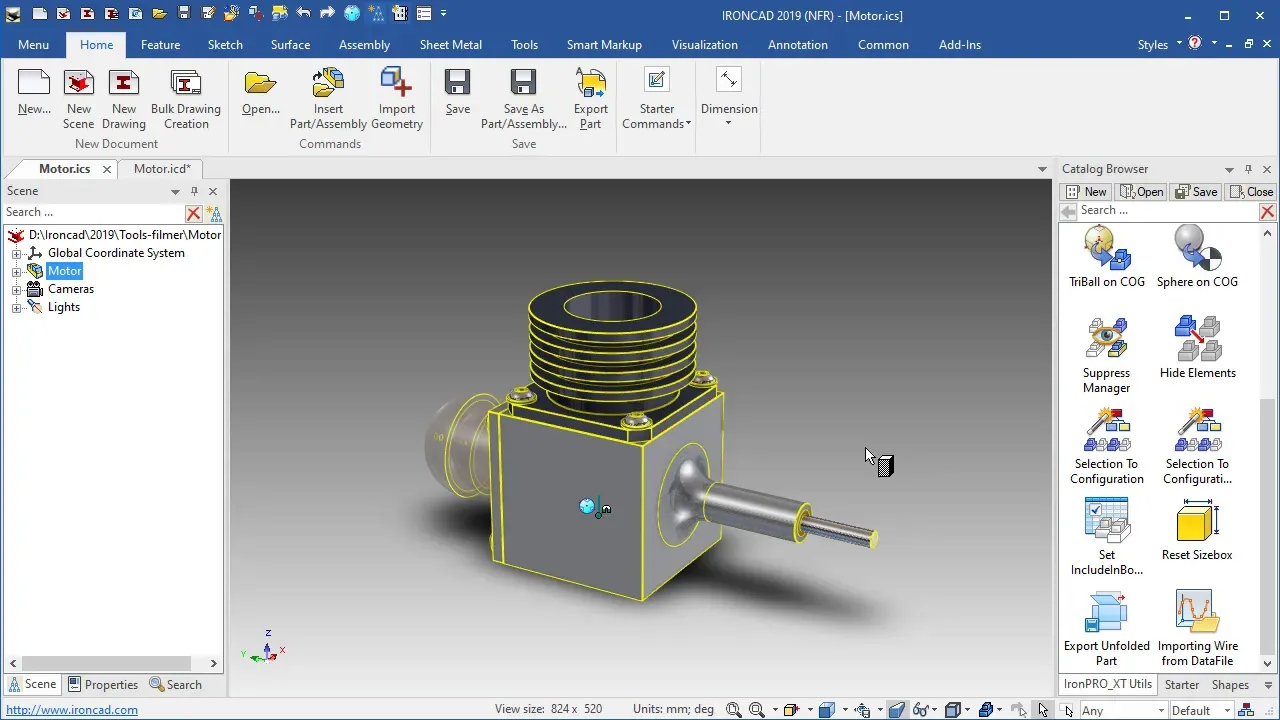

Youtube video - Set Include in BOM Status

Click to show content from YouTube.
(read the service's privacy policy)

Operativity

Drop the tool into the scene all elements will be added to the BOM.

  • Part
    • drop the tool on the part you want add to the BOM.
    • select the parts you want to include in the BOM and drop the tool into the scene, the selected parts will be added to the BOM.
  • Assembly
    • select the assembly you want to add to the BOM and drop the tool into the scene, the assembly and all sub-assemblies and all contained parts will be added to the BOM.
Tip

This tool has two modes:
- with the left mouse button: adds elements to the BOM.
- with right mouse button: removes elements to the BOM.
