Elements along 3D Path

Elements along 3D Path

With this tool you can position an element (part, assembly or intellishape) along a 3D curve or 2D sketch.

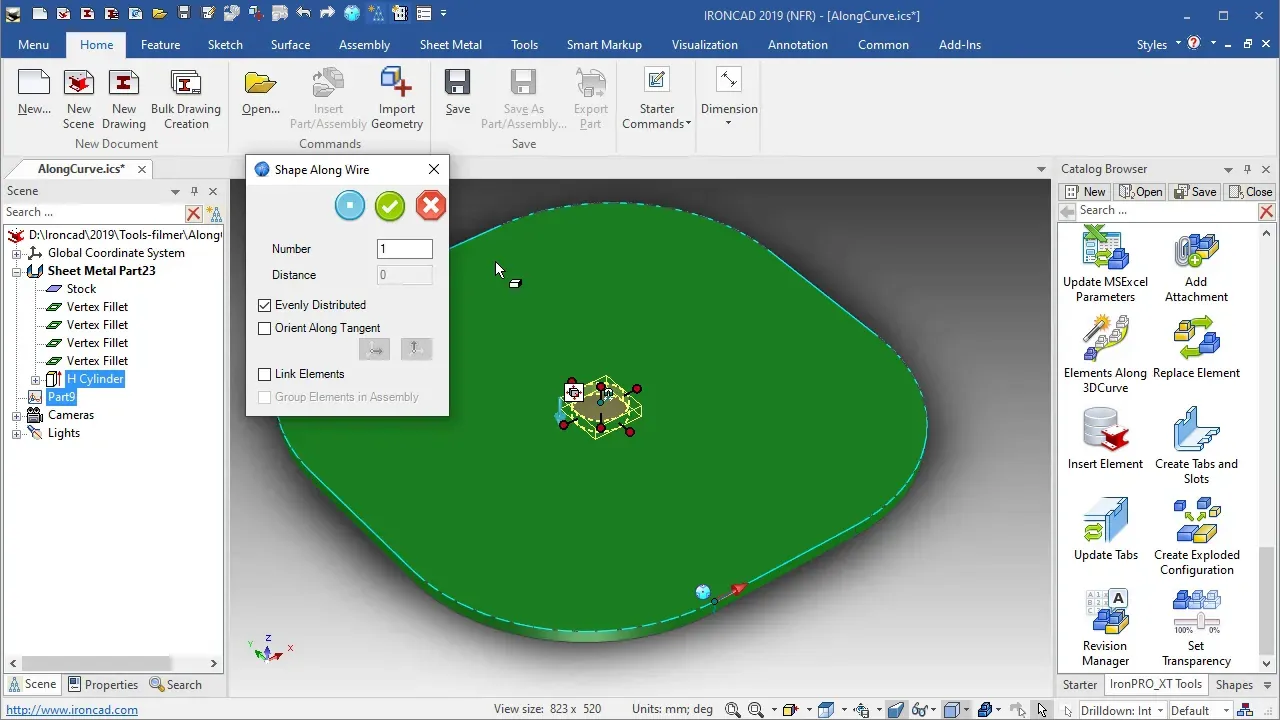

Youtube video - Elements along 3D Path

Operativity

  • Select the element and the path (curve or sketch),
  • Drop the tool into the scene.

In the dialog, set the number of copies, the distance (or even distribution) and if necessary the offset.

Elements along 3D Path

It is also possible to change the orientation in tangency along the curve with respect to the X and Z axes of the element anchor (each click on the arrow rotates the object in steps of 90 ° with respect to the chosen axis).

The positioning of the element along the path is done with respect to its anchor, as well as rotations.
