Profile to DXF

This tool allow to export a section of intellishape to a DWG/DXF file.

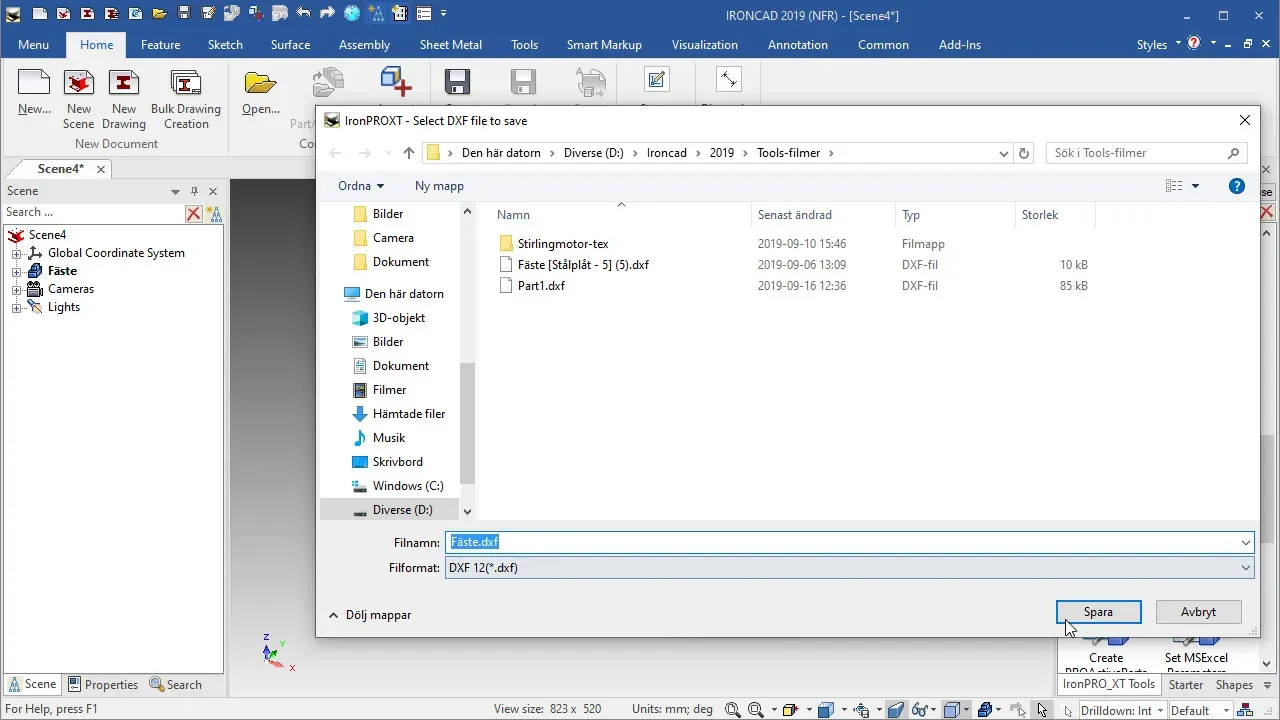

Click to show content from YouTube.
(read the service's privacy policy)

Operativity

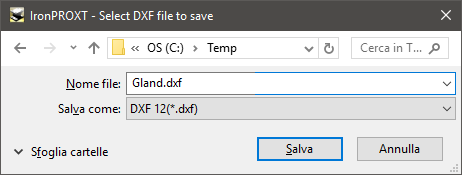

Drop the tool onto the intellishape of the part, select the destination folder and the dwg/dxf format.

(the dxf file name is set with the part name)

After saving the file will be shown the result.

Click to show content from YouTube.
(read the service's privacy policy)

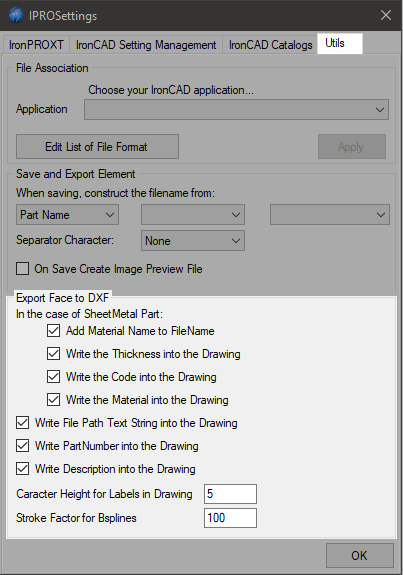

The settings and info to be written to the dxf file are also found in the IPROSettings dialog.
