The SuppressManager tool allows you to Suppress (Unsuppress, Select and Delete) Parts, Hole and IntelliShapes based on various criteria such as Status Color, Category,Dimensions, Weight, Volume and Color. Also the tool, allows you to create Configurations from the selection results.

Drag the command to the scene to activate, the dialog is divided into five tabs:

By Status Color

Search parts based on the Status Color,

It allows you to create a Configuration from the result of the selection.

Suppress Manager - Parts

By Category

Search parts based on the Category,

It allows you to create a Configuration from the result of the selection.

Suppress Manager - Parts

Parts

Search parts based on the size (or Based equivalent Volume), you can click on the cube with the arrows to detect the dimensions of the part selected in the scene.

It allows to:

  • Suppress (Unsuppress, Select or Delete) smaller or larger parts of the stated values.
  • Suppress or Unsuppress the Fasteners.
  • Suppress or Unsuppress the Holes.
  • Create a Configuration from the result of the selection.

Suppress Manager - Parts

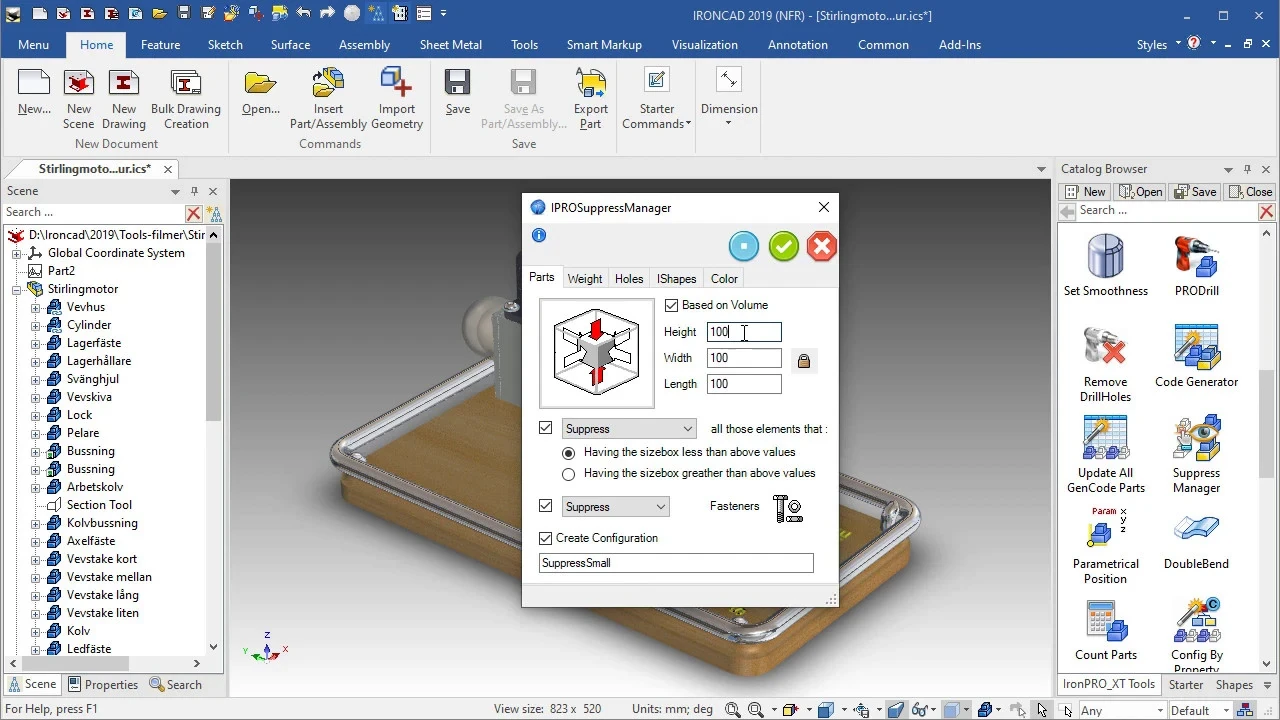

Youtube video - Suppress Manager

Weight

Search parts based on a weight range. It allows to Suppress (Unsuppress, Select or Delete) parts included or not included of the stated values.

It allows you to create a Configuration from the result of the selection.

Suppress Manager - Weight

Holes

Search holes (and the H IntelliShapes) based on the size (or Based equivalent Volume), you can click on the cube with the arrows to detect the dimensions of the part selected in the scene. It allows to Suppress (Unsuppress, Select or Delete) smaller or larger holes of the stated values. It allows you to Suppress All Holes. It allows you to Unsuppress All Holes.

Suppress Manager - Holes

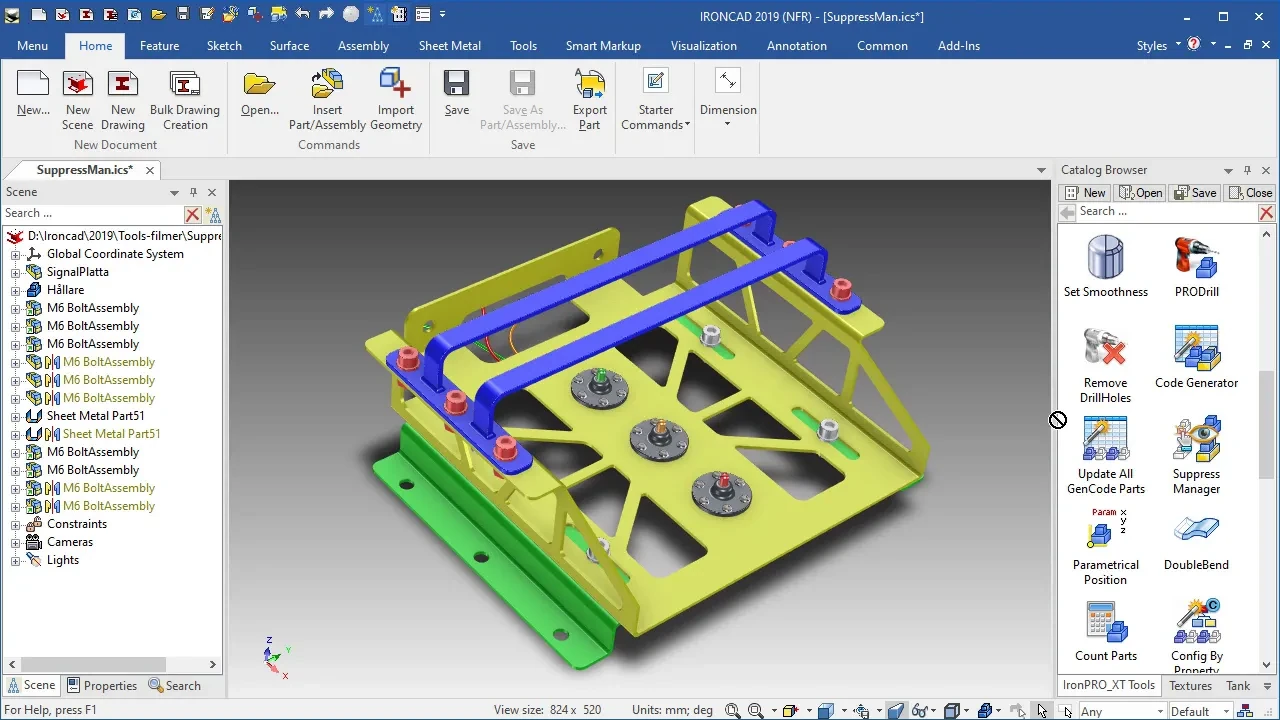

Youtube video - Suppress Manager

IntelliShapes

Search IntelliShapes based on the size (or Based equivalent Volume), you can click on the cube with the arrows to detect the dimensions of the part selected in the scene. It allows to Suppress (Unsuppress, Select or Delete) smaller or larger IntelliShapes of the stated values. It allows you to exclude from the search Blends, Chamfers and Drafts

Suppress Manager - IntelliShapes

Color

Search for parts by color, you can click on the color preview to select the color of the selected part in the scene. It allows to suppress (Unsuppress, select or delete) equal or different parts with the indicated values (R, G, B and tolerance).

It allows you to create a Configuration from the result of the selection.

Suppress Manager - Color

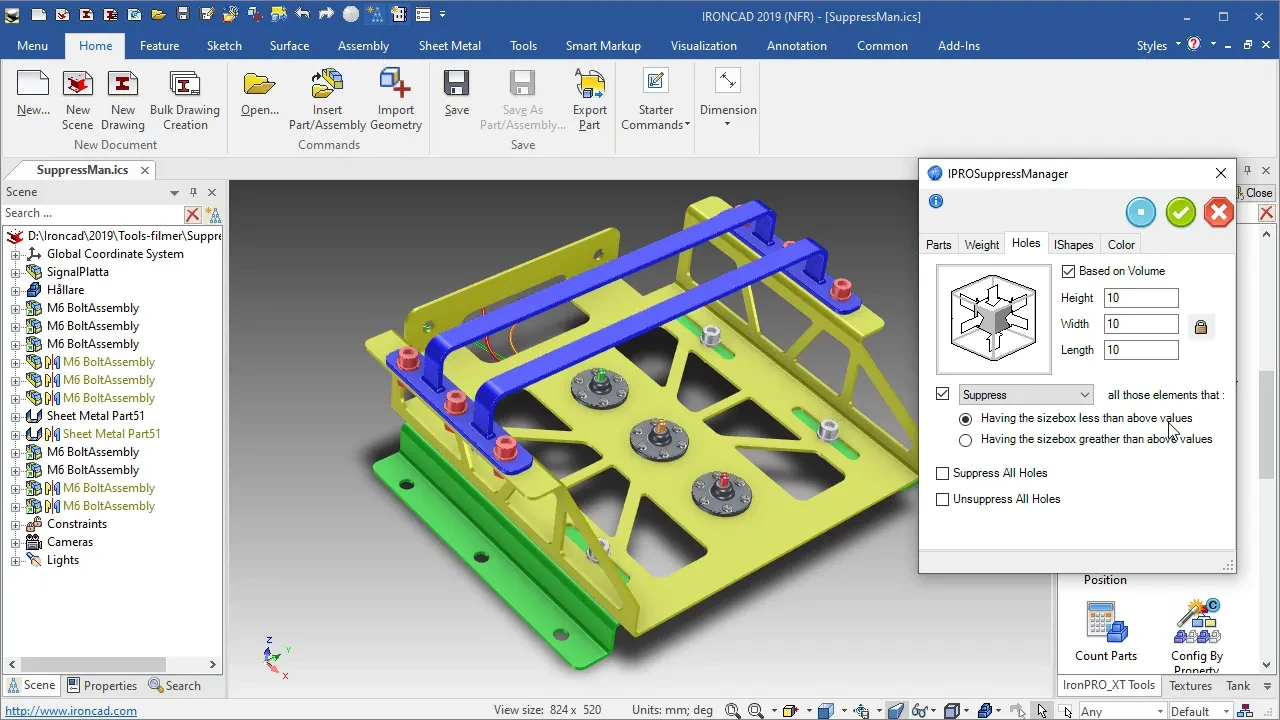

Youtube video - Suppress Manager
