Cut Pipe

With the pipe cutter tool you can divide the pipe into two parts, also it can be used to cut and insert some elements.

Operativity

To Cut:

• Drop the tool onto the tube,
• select Only Cut the Tube,
• enter the Offset distance from the base,
• or use Triball to drag and place the blue cutting disc,
• click OK to cut.

To Cut and Insert:

• Drop the tool onto the tube,
• deselect Only Cut the Tube,
• enter the Offset distance from the base,
• or use Triball to drag and place the blue cutting disc,
• select element to insert:
  • Tee
  • Flange:
    • with Distance you can insert a empty space between the flanges
  • Library:
    • library items are in ..\Library\Pipes\ _Models\Library\dirNAME
    • you can insert element as linked, and you can rotate it by 180°
• click OK to cut and insert.

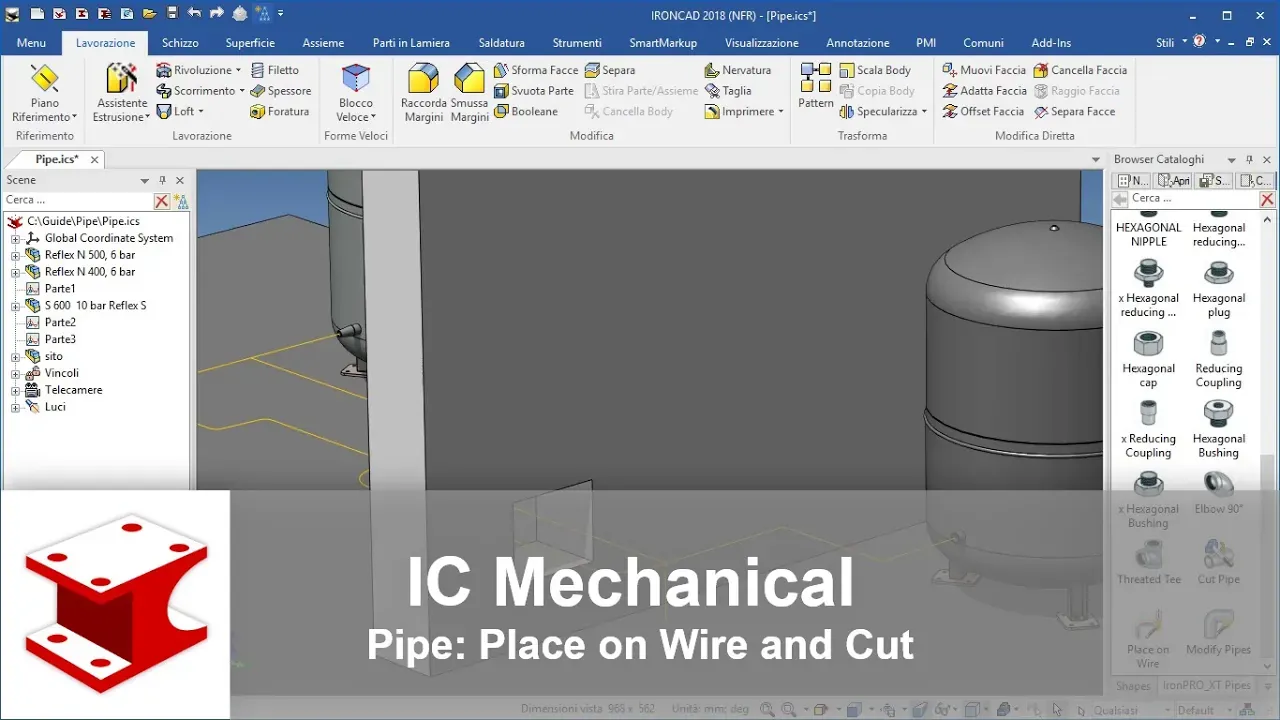

Click to show content from YouTube.
