Extend Steels

Steel Extend alt > Steel Extend

With the Extend Steels command, you can extend (or cut) two steels with each other or to a face.

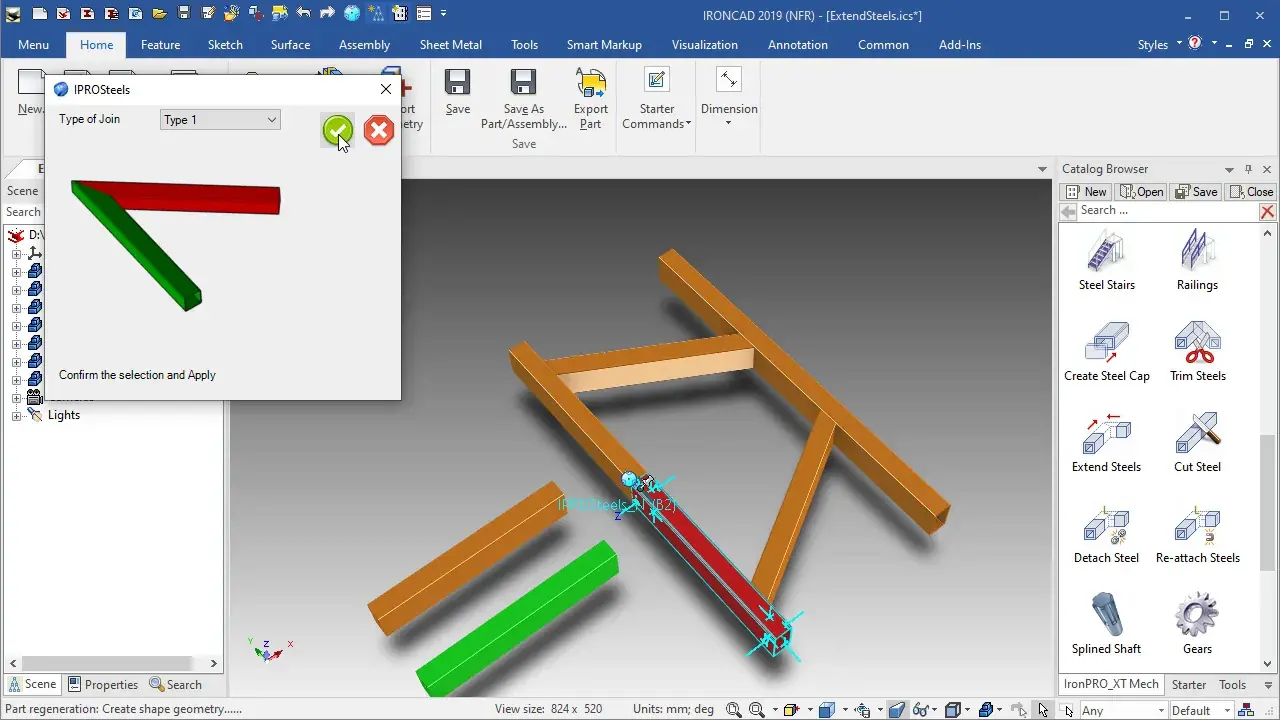

Youtube video - Extend Steels

Click to show content from YouTube.
(read the service's privacy policy)

Operativity

  1. Drag and Drop the command in the scene,
  2. Select the first Steel,
  3. Select the second steel to extend, (or Select the face to use as reference, and confirm)
  4. Select the type of join between the two steels,
  5. Confirm your choice.
Tip

If you want to apply join type 1, select first the two steels and then release the command in the scene with the right mouse button; this way you avoid all choices and no window appears.
