Create Steel Stiffener

With this tool, you can add various types of Stiffener to steel; simply drag the tool onto the steel.

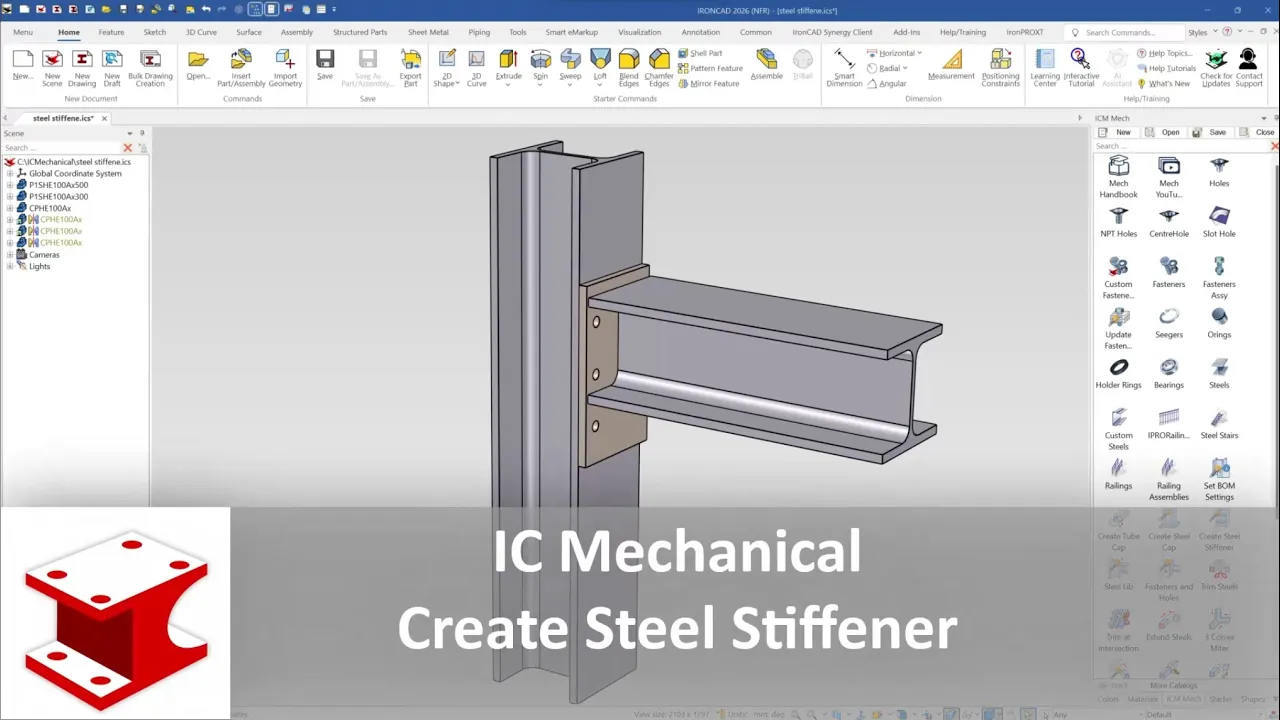

Click to show content from YouTube.
(read the service's privacy policy)

Positioning

You can use this icon to control the Reverse the extrusion direction.

Settings

This box allows you to save the component’s current settings. This enables you to quickly retrieve them in future sessions. The buttons here allow you to save, remove, or apply the saved settings.

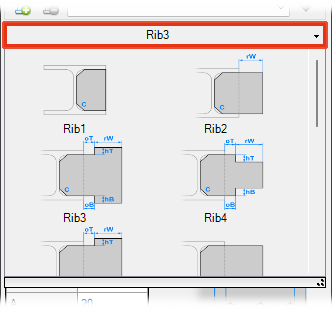

Profile Type

From the combobox it is possible to choose the section of the stiffener profile.

Parameters

The following parameters define the stiffener geometry:

• Th - Plate thickness
• rW - Reinforcement width
• oT - Top offset value - (The lock icon is used to set the same value)
• oB - Bottom offset value
• hT - Top notch height - (The lock icon is used to set the same value)
• hB - Bottom notch height
• C - Corner chamfer dimension

Holes By enabling the Holes option it is possible to automatically create hole patterns on the stiffener plate. Available parameters include:

• Diam. - Hole diameter
• Rows - Number of hole rows
• Cols - Number of hole columns
• A & B - Hole spacing distances - (The lock icon is used to set the same value)

Material

The material assigned to the stiffener can be selected directly from the dialog.

BOM Information

The bottom section of the dialog contains the items useful to set the information related to the component. The section is divided in two parts: BOM Information and Custom Information.

BOM Information section contains the same options of the other components, but there is this option more: User Name Prefix - This check button controls the enable state of the text item placed on the right. If this button is checked, any string placed in the text item will be used as prefix of the User Name.

For a detailed explanation of the other items see BOM information
