Export 2D

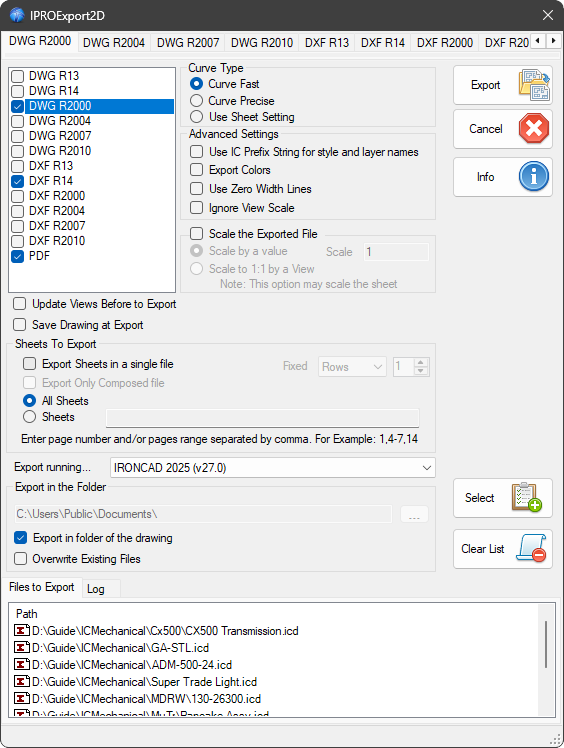

Using Export 2D, you can export selected drawings to different 2D formats (Dwg, Dxf, Pdf) simultaneously, and for each format you can set options such as line thickness, colors, scale, and output file location.

The exported files can then be used for laser cutting, mechanical processing, document exchange, or collaboration with partners and suppliers.

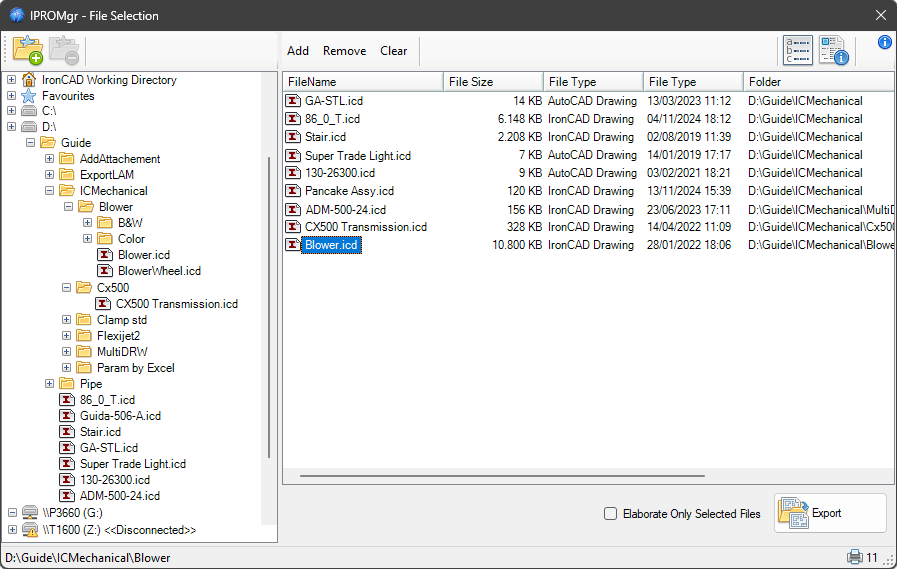

The files to be exported are selected by dragging them from the file manager or using the Select button.

The Export 2D tool is particularly useful when you need to deliver technical drawings outside of IronCAD, ensuring accuracy, consistency, and compatibility across different software platforms and manufacturing processes.
